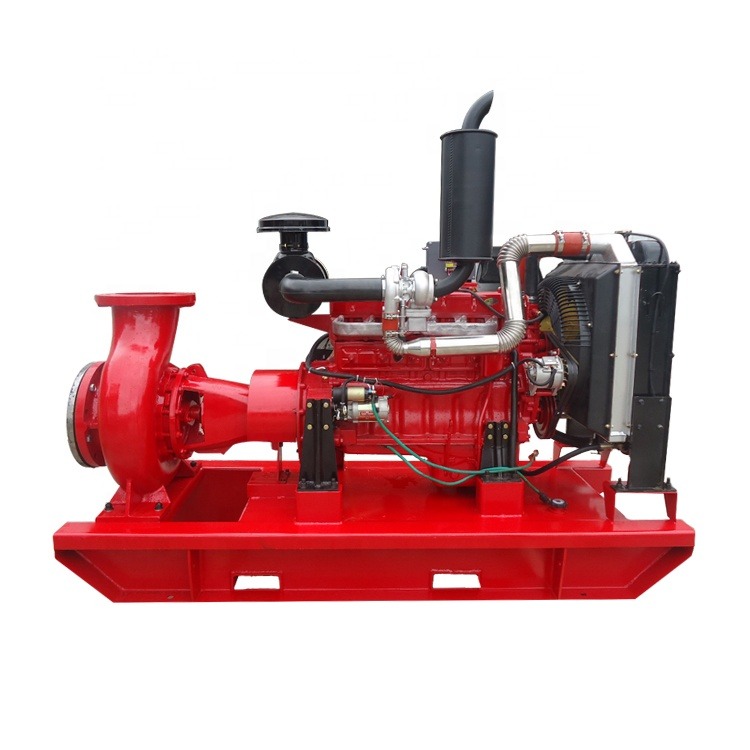

Drinking Water Treatment Fire Fighting End Centrifugal Suction 12 Inch Diesel Water Pump

1.0 Sets
MOQ
Drinking Water Treatment Fire Fighting End Centrifugal Suction 12 Inch Diesel Water Pump
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3 years
Model Number: DA
Application: Drinking water treatment, Industrial Utilities, Irrigation and Agriculture, Water Distribution, Agriculture irrigation, Firefighting, Sewage, drainage, etc.
Horsepower: /
Power Source: diesel driven
Pressure: High pressure/low pressure
Structure: Single-stage Pump
Cable Length: /
Outlet Size: Up to 300mm
Voltage: /
Power: /, disel engine(11kw, 37kw,45kw,55kw, 75kw all have)
Theory: Centrifugal Pump
Pump Size: 2-12inch (50-300mm)
Pump Material: Cast iron or Stainless steel
Pump Type: Horizontal single stage single suction ens duction centrifugal pump
Engine Type: Air cooler or water cooler
Pump Parts: pump casing, pump impeller, spray, pipe, etc.
Item: Booster pump
Usage: Booster Pump
Certification: ce
Informations de base
Certification: ce
Model Number: DA
Conditions de paiement et expédition
Packaging Details: 1pc/ standard plywood case, Booster pump
Supply Ability: 500 Set/Sets per Month Booster pump
Description de produit



Product Description

     Our end suction centrifugal pump is specialized in pumping water , liquid, chemical substances, etc. With compact structure , its working diameter ranges from 50mm to 300 mm, each model of our product has 4-5 impellers with different sizes, the rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This circulation for air conditioner, sewage treatment and other fields.

The Specification of ISO Series End Suction Centrifugal Pump
Model ISO series
Discharge Diameter DN32-200mm
Inlet/ Outlet Diameter 125,100mm
Flow Rate 4-1600 m3/h
Head 2-160 m
Frequency 50/60 HZ
Speed 2900/1450/3500/1750 rpm
Power 1.5-160 kw all have
Standard DIN24255, ISO2858, BS EN733
Material Cast iron, Stainless steel 304/316/316L
Fuel Diesel engine, gas engine or electric motor
Application Agriculture irrigation, firefighting, drainage, Sewage, chemical, oil and other fields.
Medium Temperature  -15-80°C(standard) 80-145°C(on special request)
Working Pressure  ≤1.6MPa(standard) ≤2.4MPa(on special request)
Accessories 2 or 4 wheels trailer, silence-box, control panel, base plate and so on.
More information, please contact us.

Specification



SPECIFICATIONS FOR AGRICULTURE IRRIGATION WATER PUMP
Pump
 Size 2 - 12 inch ( 50-300 mm )
Material Cast iron or Stainless steel
Application Agriculture Irrigation System, Firefighting System, Drainage System and Sewage.
 Main performance parameters Max.Flow 0-1600 m3/h
Max. Head 0-150 m
Power 11kw, 37kw, 45kw, 55kw, 75kw, 110kw All have
 Accessories
 Trailer 2 or 4 wheels trailer
Control panel Normal  or Intelligent control panel
Silence-box Semi-open or Full closed silence-box

Here are some pump models.

 Model: DA80/26B    Model: DA40/32H
 Inlet/Outlet: 100mm/80mm  Inlet/Outlet: 65mm/40mm
 Working Point: 176.5m3/h@71m  Working Point: 21m3/h@150m
 Max. Capacity: 209m3/h  Max. Capacity: 54m3/h
 Max. Pressure: 8 bar  Max. Pressure: 155m
 Rotation Speed: 2900rpm  Rotation Speed: 2900rpm
 Shaft Power: 53.3kw  Shaft Power: 38.74kw
 Engine Brand: Changchai  Engine Model: CZ4110
 Engine Model: CZ4110  Engine Type: water cooler, 4-cylinder
 Power@Speed: 76kw@2900rpm  Power@Speed: 57HP@2900rpm
Application



Mian products
Product configuratio



Our Services



Company Information



QQ:2721172125

Wechat:+8618858795068

WhatsApp:+8618858795068

Web:www.defupump.com


FAQ

1. Q: Whats the MOQ ?

A: 1 set for regular product ,the special one we need to discuss.



2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T.

For order valve >4000USD, we can accept 30 % T/T inadvance , 70 % should be paid before shipping.



3 . Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment.
For the orders out of stock , the products time is 7 days for bare pump, 25days for electric pump set or diesel engine pump set , the deliver time is base on the shipping date and your order by sea.



4. Q: What about the package ?
A : Standard export Plywood case .



5.Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS.
For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.



6. Q : How long is the warranty ?

A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts.
